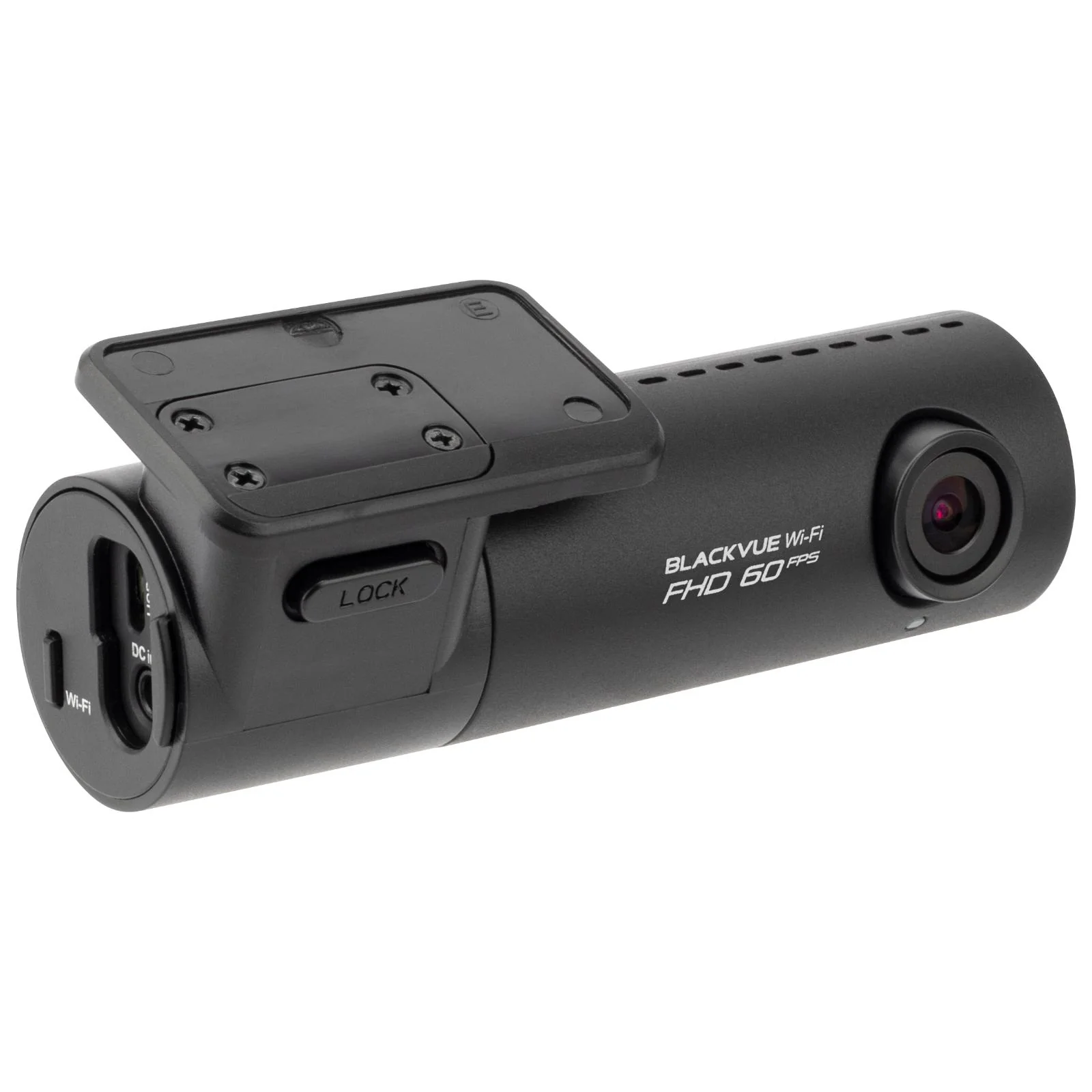

BENCHMARK 2-CHANNEL DR750X-1CH PLUS

THE DR750X-2CH REPRESENTS THE BENCHMARK IN THE SINGLE-CHANNEL DASH CAM CATEGORY, THE CHOICE FOR THE POWER-USER WHO DEMANDS THE ULTIMATE IN TERMS OF VIDEO QUALITY AND NEXT-GENERATION CONNECTED FEATURES.

PLUS IMPROVED SONY STARVIS SENSOR

The Sony STARVIS™ image sensor that equips the DR750X Plus Series front and rear cameras delivers outstanding low-light performance.

The back-illuminated sensor is capable of capturing an unprecedented amount of detail in both shadows and highlights.

DR750X-2CH DEFINITIVE

The DR750X-2CH represents the benchmark in the two-channel dash cam category, the choice for the power-user who demands the ultimate in terms of video quality and next-generation connected features.

Front HD 60FPS
2 Channel
CLOUD
4G READY
139°
Wi-Fi/GPS

With Full HD 1080p performance front and rear, the DR750X-2CH provides class-leading protection for your vehicle by recording fluid 60 frames per second video footage (rear @ 30fpps) via an ultra-wide lens with a 139° viewing angle. A Sony STARVIS image sensor ensures the best possible image quality under any lighting conditions. Also included is GPS logging, Wi-Fi, Cloud-connectivity and impact and motion detection. All this in a stealthy compact design.

The DR750X is also compatible with BlackVue Cloud – a unique suite of LIVE app-based features that remotely connecting you with your vehicle, providing additional functionality including Live View, Remote Video Playback, Video Backup, Realtime Tracking and Emergency Notification Alerts.

The DR750X is upgradable to full 4G always-on Cloud Connectivity, with the addition of the CM100LTE external connectivity module and supplied data SIM, meaning that you are always connected to your dash cam via the BlackVue app, and always able to receive notifications and remotely view video clips in the event of an incident.

2 CHANNEL

With twin Full HD cameras and a Sony STARVIS image sensor, the DR750X-2CH offers exceptional day and night performance.

PARKING MODE

The DR750X-1CH protects your vehicle even when you’re not around, thanks to BlackVue’s unique Intelligent Parking Mode.

GPS & DUAL BAND WIFI

Built-in GPS adds optional location and speed data overlay to recordings while Wi-Fi provides wireless connection to smartphones.

APP CONTROL

The BlackVue app for iOS & Android provides access the your dash cam’s settings, video files and LIVE BlackVue Cloud features.

FULL HD 60FPS + SONY STARVIS

With Full HD 1080p resolution, smooth 60 frames per second footage, ultra-wide lens with a 139° viewing angle, and SONY’S remarkable industry-leading STARVIS image sensor, the DR750X-1CH provides class-leading protection for your vehicle, in any lighting conditions.

SPECIFICATION

Model Name DR750X-2CH
Channel 2CH
Highlights Full HD (Front + Rear), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module
Product Dimensions Front: W 118.5 mm (4.67″) x H 36 mm (1.42″) /105 g (3.70 oz) Rear: W 67.4 mm (2.65″) x H 25 mm (0.98″) / 25 g (0.88 oz)
Rear Camera Connection Coaxial cable
Memory Support microSD card up to 256GB
Recording Modes – Normal, – Event (Impact Detection / Speed Limit / Manual), – Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
Parking Mode YES (with 3-wire hardwiring cable – included)
Parking Mode Event Voice Notifications YES
Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 139°, Horizontal 116°, Vertical 61°
Resolution Frame Rate Front / Rear Full HD @60fps – Full HD @30fps * Frame rate may vary during Wi-Fi streaming.
Video Codec H.264 (AVC)
Image Quality and Bitrate Front/Rear Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps
Format Free YES (Adaptive)
Event File Overwrite Protection YES (up to 50)
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b.g.n)
Cloud Compatible YES
GPS Built-in (Dual Band : GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Front: Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LEDRear: Rear Security LED
Button Button: Wi-Fi ON/OFF (Tap) Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
Operation Temperature -20 °C − 85 °C (-4 °F − 185 °F)
Storage Temperature -20 °C − 90 °C (-4 °F − 194 °F )
High Temp Cut Off Approx. 85 °C (185 °F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour Normal Mode (WiFi On / GPS On / 2CH) : 375mA / hour Normal Mode (WiFi Off / GPS On / 2CH) : 340mA / hour Parking Mode (WiFi On / GPS Off / 2CH) : 320mA / hour Parking Mode (WiFi Off / GPS Off / 2CH) : 285mA / hour * Actual power consumption may vary depending on use conditions and environment.
Certifications Front: FCC, CE, RoHS, Telec, WEEE, IC Rear: FCC, CE, RoHS, WEEE
software BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher
Application BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
Others Adaptive Format-Free File Management System
LTE External (optional)

WHAT'S INCLUDED

Front camera
Rear camera
32GB Card
Cigarette lighter power cable
Hardwiring power cable
microSD Card reader
Rear camera connection cable (6m / 19.68ft)
Double-sided tape for the Mounting Brackets
Cable clips(8EA)
Pry tool
Quick start guide
